CAN AM SPYDER Raffi Ahmad

Engine
Manufacturer................................BRP-Rotax
Type.............................................. 990 V-Twin
Displacement...............................60.90 in3 (998cc)
Bore.............................................. 3.82 in (97 mm)
Stroke...........................................2 .68 in (68 mm)
Cylinder........................................2
Valves per cylinder.......................DOHC 4
Max output...................................106 hp @ 8500 rpm
(79 kW @ 8500 rpm)
Max torque...................................77 lb-ft @ 6250 rpm
(104.3 Nm @ 6250 rpm)
Compression ratio........................10.8:1
Ignition type.................................Electronic ignition with
dual output coil
Lubrication....................................5W4 0 BRP synthetic oil
Exhaust system.............................2-into-1 with catalytic converter
Cooling.........................................Li quid cooled
Injection........................................M ulti-point EFI with 57 mm
diameter throttle bodies

Drive Train
Gear box......................................Sequentia l Manual 5-Speed (SM5)
with transmission-based reverse
Optional gear box........................Sequential Electronic 5-Speed (SE5)
with transmission-based reverse
Final drive.....................................28/79 ratio final drive with
Carbon-reinforced drive belt
Clutch...........................................W et, multi-plate, manual or electronic
operation through a hydraulic piston

Electric Equipment
Magneto.......................................500 Watt
Starter........................................... Electric
Battery..........................................D ry Cell, 12V, 21 Amp

Geometry
Front suspension..........................Double A-Arm with anti-roll bar
Front suspension travel................5.67 in (144 mm) with adjustable cam
Rear suspension...........................Swing-arm with monoshock
Rear suspension travel.................5.71 in (145 mm) with adjustable cam
Chassis type.................................SST Spyder
(Surrounding Spar Technology)
Steering........................................DP S (Dynamic Power Steering)

Tires & Wheels
Front tire.......................................KR21 165/65R14
Front nominal pressure................13-17 psi (89-117 kPa)
Rear tire........................................KR21 225/50R15
Rear nominal pressure..................26-30 psi (179-207 kPa)
Wheel size, front...........................Aluminum 14x5 (355x127)
Wheel size, rear............................Aluminum 15x7 (381x178)

Brakes
Type..........................................Foot-actuated, fully integrated
hydraulic 3-wheel braking system
Front braking system................4 piston calipers with 10.2 in x 0.25 in
(260 mm x 6 mm) discs
Rear braking system.................Single-piston caliper with 10.2 in x 0.25 in
(260 mm x 6 mm) disc
EBD..........................................Elect ronic Brake Distribution
ABS...........................................Anti-lock Braking System
Parking brake...........................Mechanical, foot actuated to the
rear caliper

Safety & Security
VSS...........................................Vehi cle Stability System
ABS...........................................Anti-lock Braking System
TCS...........................................Trac tion Control System
SCS...........................................Stab ility Control System with
Roll-Over Mitigation
DPS...........................................Dyna mic Power Steering
DESS.........................................Digit ally Encoded Security System

Vehicle Dimensions & Weights
Dry vehicle weight....................697 lbs (316 kg)
Front storage capacity.............2,685 in3 (44 l)
Front max load capacity...........30 lbs (15.9 kg)
Total vehicle load allowed........440 lbs (200 kg)
Fuel capacity............................6.6 US gal (25 l)
Oil capacity..............................1.19 US gal (4.5 l)
Coolant capacity......................0.85 US gal (3.2 l)
GVWR.......................................1,188 lbs (540 kg)
Ground clearance.....................4.5 in (115 mm)
Vehicle overall height...............45.1 in (1,145 mm)
Vehicle overall length...............105 in (2,667 mm)
Vehicle overall width................59.3 in (1,506 mm)
Seat (top) height.......................29 in (737 mm)
Wheel base..............................68 in (1,727 mm)
Wheel track, front.....................51.5 in (1,308 mm)
Type of gas...............................Unleaded, 87 octane minimum

Features & Main Options
Color choices...........................Full Moon
Millennium Yellow
Roadster Red
Instrumentation........................Dual analog and LCD w/speedometer,
tachometer, electric fuel gauge,
daily trip (A & B) meters, engine
temperature, ambient temperature
and gear position indicator. Information
displayed in either metric or US Standards
Main options............................Fog lights, xenon lights,
mono seat cover, racing exhaust pipe,
travel bags, cargo liner, passenger
backrest, low and high windshields




width: 568px; height: 400px;"

2010 New Lotus Sports Cars Exige S240

British performance sports car manufacturer Lotus has officially unveiled their 2010 Lotus Exige S240.  While Lotus fans will recognize this as a very subtle update, the grille and rear wing facelift is a step forward for the mark. The exciting new 2010 Lotus Exige S240 enters the United States and Canadian markets in the fall of 2009 with new front styling, a new rear wing and the same rare combination of exceptional performance and high efficiency.
2010 New Lotus Sports Cars Exige S240
The Lotus Exige S240 features a roof integrated air intake scoop feeds air through the air-to-air intercooled and supercharged 1.8 liter Lotus-tuned and Toyota-sourced 2ZZ-GE engine with Intelligent Variable Valve Timing (VVT-i) to provide 240hp at 8,000 rpm and 170 ft.-lbs. of torque at 5,500.
The 2010 Lotus Exige S240 sprints to 60 mph in a blistering 4.1 seconds and the 100 mph barrier sails by in approximately 10 seconds with top speed is 150 mph. The Lotus Exige S240 is equipped with a 6-speed transaxle synchromesh transmission, traction control and launch control. New for 2010, the optional Track Package will include adjustable Ohlins dampers with threaded spring perches and remote oil reservoirs front and rear.
The Lotus Exige is a renowned high performance coupe that has a well earned reputation as the choice for drivers who demand uncompromised performance, both on the road and on the track. The 2010 Exige S240 introduces a few key enhancements to update the appearance and improve aerodynamic performance. A restyled front end and new larger, low drag rear wing, not only reduces drag, but also gives a more muscular stance enhancing the lightweight shrink-wrapped look of the whole car.
Passing along lessons learned on the track with the Exige GT3 racing program, Lotus Sport Cars has contributed another important technology – variable launch control combined with variable traction control. The launch control allows the driver to determine the number of revs they wish to use during a standing start. Having programmed that limit, the driver then holds their foot down fully on the throttle pedal and sidesteps the clutch pedal for a very quick departure from the line. The clutch damper cushions the severity of the clutch to transmission engagement to minimize the stresses to the drivetrain. The launch control also keeps wheel-spin at bay until 6 mph, after which the traction control assumes its duties.
Like all Lotus cars, the functional components of the car are also beautifully designed as Russell Carr, Chief of Lotus Design, explains, "For 2010 we have taken the already visually extreme Exige and given it even more visual drama. The changes we have integrated to the front and rear of the Exige signal an even clearer and purposeful intent. The functional rear wing is race-inspired, the new angular air intakes and full width splitter give a more hard-edged and aggressive look. Overall, the Exige appears more planted and gives the illusion that both the front and rear of the car are wider than they really are, yet without losing its agile and sleek character."
The new 2010 Lotus Exige S240 is scheduled to launch in the US and Canada in the Fall of 2009. This new 2010 Lotus Exige S240 goes on sale this fall with a starting price of $65,690 and will be available in an upgraded track package with added performance benefits. The 2010 Lotus Exige S240 will hit U.S. and Canadian markets this Autumn.

Sunday, May 30, 2010

2010 SpeedFactory Sports Cars SF600R Dodge Challenger

American tuners SpeedFactory have increased the output of the Dodge Challenger SRT8 from 425 hp to 600 hp (447 kW / 608 PS) without the use of a supercharger.
2010 SpeedFactory Sports Cars SF600R Dodge Challenger
Starting with the standard 6.1-liter HEMI engine engineers increased the displacement to a full 7.0-liters (426 cu in). In addition to a higher volume air intake system matched with a stainless steel Corsa exhaust , SpeedFactory also used "a custom Comp hydraulic cam along with an 85mm throttle body with a CNC machined stock manifold that is port matched with a blended plenum to produce a dyno-proven 595-605 HP on premium-grade 91 octane pump fuel," the company states in a press release.
Equipped with a six-speed manual transmission, SpeedFactory also adds a Getrag IRS and Centerforce clutch, as well as a few other goodies. The engine is not the only thing to get an upgrade on the car.  The vehicle's handling is buffed up with performance-grade springs, added struts, and new sway bars.  20-inch BBS wheels are wrapped in Michelin Pilot Sport PS2 tires.
Leather seats, leather door inserts, custom floormats and various badging round out the package.  The 2010 SF600R Challenger is now available, and costs $73,900.
Press Release:
SpeedFactory Introduces the 2010 SF600R Challenger
Atlanta, April 20, 2010 – SpeedFactory, the leader in modern Mopar supercars, today announced the industry’s first 6spd manual, 600 HP ‘SF600R’ Challenger, as part of their complete line of 2010 Mopar supercars.
The ‘R’ designation in the SF600R Challenger denotes a SpeedFactory hi-performance, normally-aspirated, bored, stroked and balanced 6.1L Hemi block, increasing the displacement to 426 cu. in. (7 liters).
This modern 426 powerplant has an all-forged rotating assembly and features CNC ported aluminum heads with new valves, guides, seals, Bee Hive springs and titanium retainers. A custom Comp hydraulic cam along with an 85mm throttle body works with a CNC machined stock manifold that is port matched with a blended plenum to produce a dyno-proven 595-605 HP on premium-grade 91 octane pump fuel.
Additional SpeedFactory performance modifications include a CARB- certified high volume air intake and Corsa stainless steel cat back exhaust system for better breathing. The increased power is managed with a Centerforce clutch and a Getrag IRS with 1000 HP half-shafts. Handling is improved with performance springs and sway bars as well as additional front and rear strut tower braces. The SF600R Challenger rides on premium Michelin Pilot Sport PS2 tires mounted on staggered 20? BBS Black Edition CH-R flow-formed wheels.
The SpeedFactory Signature package is also included on the SF600R and features a serial numbered plaque along with SpeedFactory exterior badging and graphics. Inside the SF600R features premium leather seats and door panels embossed with SpeedFactory branding as well as custom floor mats.
On the addition of the SF600R Challenger to the SpeedFactory line-up, Mike Brillanti, President, SpeedFactory Sports Cars stated “This car offers supercharged power in a normally-aspirated, 6spd manual package. It’s a true enthusiast’s sports ar and it enables us to widen the appeal of SpeedFactory products to now include a 600HP vehicle for those enthusiasts who prefer a ‘normally-aspirated’ powerplant. We offer the SF600R with either a 5spd automatic or the 6spd manual transmission. ”

Saturday, May 29, 2010

2014 New MG Sports Cars TF Roadster

LONDON — MG Motor has begun work on an all-new front-engine, rear-drive open-top sports cars to replace its aging midengine TF roadster, now 15 years old. MG insiders tell Inside Line that the company might consider selling the sports cars in the U.S., given the marque's history in North America, but currently have no solid plans for a return.
2014 New MG Sports Cars TF Roadster
MG and SAIC have to provide the Mazda Miata with a little competition which could mean trouble for Mazda. Right now, it seems that Mazda is doing some damage with the Miata and its faithful followers, but one look at this rendering and people might decide to jump ship and cruise with the MG.
Development is at a very early stage and has significantly lower priority than the company's plans to introduce both the new MG6 hatchback, already on sale in China, and a new supermini to its U.K. factory. MG's Chinese owner Shanghai Auto hopes to re-establish mainstream car production in Britain and relaunch the MG brand across Europe.
But the company believes that a new sports cars is essential to the long-term credibility of MG as a sporting brand. Though far from concrete, the aim is to introduce the model during 2014. It would be built at MG's Birmingham, England plant.
That means the sports car manufacturer will not actually be manufacturing any sports cars for at least three years, rather preferring to focus its attention on the new MG6 and a small city car to be built in the UK. MG plans to build the new sports cars in Birmingham, England, as the brand’s Chinese owner, Shanghai Automotive Industry Corp (SAIC), attempts to reintroduce MG throughout Europe. One source close to the project says that MG wants to create a direct rival to the Mazda Miata, which is why a front-engine, rear-drive layout is preferred.
The first rumored model to be offered will be the 2014 MG TF Roadster with a front engine or rear drive layout and a soft-top design. A retactable hadrtop will not be offered due to cost and complexity. Under the hood there will be a GM sourced turbodiesel, a gasoline V6 engine, and a hybrid powertrain based on the system in SIAC Rowe 750. Although production is 3 years off, sources close to the project tell us that the early designs for the 2014 MG TF resemble these renderings. Note that the TF will again employ a soft top design.
Sources tell us a midengine layout, as used on today's TF, has been rejected because of the styling and packaging limitations it forces on the car, while front-wheel drive has been eliminated for not being sporty enough. MG does not expect the TF to live much beyond the end of 2010, leaving the brand without a sports cars for at least three years while a new model is developed. The company has not ruled out trying to find a partner with which to share a platform.

Is VW looking to buy Malaysia's Proton?

Volkswagen


It looks like Volkswagen may be continuing to raid the global buffet of lesser automakers. According to reports, Malaysian carbuilder Proton has been in talks with ze People's automaker in an attempt to establish some sort of alliance, thought for now details are sketchy at best. Proton has made it clear that it's more interested in upping its exports than anything else. Given that fact, it wouldn't surprise us to see Proton-built machines wearing VW badges in some far-flung corners of the globe.

On the other hand, reports have surfaced that claim that VW has already admitted to looking into sharing platforms and engines with Proton as part of some sort of agreement, and that both companies have already explored badging the current Jetta as a new-and-improved Proton Perdana. Either way, we're told to expect a more solid announcement to come from the two companies by early next month. We'll keep our ears to the ground until then

[Source: Canadian Business]

2011 Ford Mondeo coming with 2.0L Ecoboost

2011 Ford Mondeo


The Ford Mondeo is due for a mid-cycle refresh for the 2011 model year and all signs point to a debut at the Paris Motor Show this September. But ahead of its big reveal, spy photographers have caught the new Mondeo out in the open, and while the basic shape hasn't changed, there's something far more interesting under the hood.

The major stylistic upgrades are up front, where the Mondeo's fascia picks up a few cues from the Fiesta and the 2012 Focus, including a larger lower grille and slimmer upper section. The front foglamps have been re-shaped and a strip of LED running lamps tie the design into Ford's B-segment hatch.

At the back, the tailgate gets a subtle re-shaping above the license plate pocket and it appears the lights have been modified under the camo tape. The most important changes will be in the engine compartment, where the Mondeo will get the new 2.0-liter Ecoboost inline-four and the Powershift dual-clutch transmission. Expect all the details to be revealed shortly ahead of the Paris show this fall.



[Source: Secret New Cars]

Friday, May 28, 2010

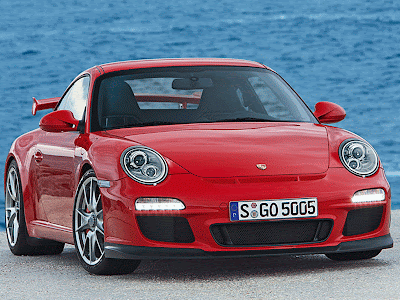

2010 New Porsche Sports Cars 911 GT3 at The Geneva

Stuttgart. Dr. Ing. h.c. F. Porsche AG, Stuttgart, is adding yet another new model to the second generation of the 911 model series: the new GT3 even more powerful, faster, and refined than its predecessor. In developing the most sporting and dynamic road-going 911 with a normal-aspiration power unit, Porsche has applied a wide range of know-how gained in motorsport. Indeed, this is precisely why the 2010 new Porsche 911 GT3 is truly impressive not only on the road, but also on the race track.
2010 Porsche Sports Cars 911 GT3
The 2010 new Porsche 911 GT3 is the latest evolution of an iconic sports car. Embodying the essence of more than 23,000 Porsche racing victories, the 911 GT3 is the ultimate integration of driver and car and arrives in the UK this autumn. The new 911 GT3 is making its world debut at the Geneva Motor Show on 3 March, with Europe-wide sales starting in May.
The Porsche 911 GT3 offers an even higher standard above all in two key areas: performance and driving dynamics. The proven six-cylinder naturally aspirated power unit now develops a maximum output of 435 hp (320 kW), up 20 hp over its predecessor. This results first and foremost from an increase in engine capacity by 200 cc to 3.8-litres and from improved cylinder head gas flow: now not only the intake, but for the first time also the exhaust camshafts, are adjusted by VarioCam.
A further important point is that, through its upgraded power and performance, the flat six 'boxer' engine also offers a significant increase in torque at medium engine speeds, a benefit of particular significance in everyday motoring. Clearly, this also means a further improvement in performance; the new Porsche 911 GT3 accelerates from a standstill to 62 mph (100 km/h) in 4.1 seconds and reaches 99 mph (160 km/h) in 8.2 seconds. Top speed is 194 mph.
The second emphasis in developing the Porsche 911 GT3 to an even higher standard was to further improve the car's driving dynamics. For the first time, the Porsche 911 GT3 comes with a particularly sporting variant of Porsche Stability Management (PSM), offering the facility to deactivate both Stability Control (SC) and Traction Control (TC) in separate steps. And to give the driver unrestricted, individual control over the driving dynamics of his car, these functions are not reactivated automatically even under the most extreme driving conditions, but only at the touch of a button.
The Porsche Active Suspension Management (PASM) fitted to the 911 GT3 has enabled Porsche engineers to make the springs and anti-roll bars stiffer yet again, thus ensuring even more precise handling in the PASM 'sports' mode. However, the PASM ensures appropriate ride comfort suitable for everyday use when in the 'normal' PASM mode. The Porsche 911 GT3 rides on new, lighter wheels in a racing-inspired design - with a centre locking nut - fitted with ultra-high performance (UHP) tyres. Tyre pressure monitoring is fitted as standard.
Making the car even more suitable for the race track, the new Porsche 911 GT3 will be available with the option of new and highly innovative Porsche Active Drivetrain Mount (PADM) engine mountings. These special engine mounts recognise a particularly sporting, race-like style of driving, making the normally 'elastic' engine mounts harder and particularly resistant. This retains all the motoring comfort of the GT3 in everyday traffic, while on the race track the effect of the mass forces coming from the engine is much reduced, particularly in fast bends and on winding tracks. Yet a further advantage is improved traction when accelerating from a standstill.
Another new feature is the optional lift system for the front axle which is able to increase the ground clearance of the car, at the touch of a button, for driving on bumpy surfaces or steep gradients - for example into an underground garage - by 30 millimetres (approx 1.2 inches).
The Euro base price of the new GT3 is Euro 98,100, in Germany the retail price including value-added tax and specific national features is Euro 116,947. In the USA the GT3 will be at the dealership in October at a price of USD 112,200 (MSRP without taxes).

Thursday, May 27, 2010

2010 Porsche Sports Cars 911 GT3 R Hybrid

Known as the 2010 Porsche 911 GT3 R Hybrid, the model hints at new hybrid technology that Porsche Sports Cars will use in its motorsport ventures. According to Porsche, the 911 GT3 R Hybrid will be used as a study to gather information about how hybrid drive will behave under a racing environment and will also help the German automaker study how it can be applied to its road cars.
2010 Porsche 911 GT3 R Hybrid
During Porsche's press conference here at the Geneva Motor Show, most of our attention was understandably on the 918 Spyder Concept, but the German automaker had several other significant debuts. One was the 911 GT3 R Hybrid, Porsche's first race car to feature electric power sourced from a duo of motors that send power to a generator attached the flywheel. Like many hybrid production cars, the motors are charged whenever the brakes are applied, and the driver can use the extra power for 6-8 seconds for overtaking.
Exactly 110 years after Ferdinand Porsche developed the world's first car with hybrid drive, the Lohner Porsche Semper Vivus, Dr. Ing. h.c. F. Porsche AG, Stuttgart, is once again taking up this visionary drive concept in production-based GT racing: During the Geneva Motor Show, a Porsche Sports Cars 911 GT3 R with innovative hybrid drive is making its debut, opening up a new chapter in the history of Porsche with more than 20,000 wins in 45 years scored by the extremely successful Porsche 911 in racing trim.
Unlike a conventional battery-electric hybrid system the Porsche 911 GT3 R uses a flywheel system, which gathers kinetic energy under braking to power two electric-motors that are mounted in a single assembly and are connected to the front wheel. After each boost of charge, the two motors provide 6 to 8 second jolts of power. The extra power is engaged by pressing a button on the steering wheel, providing up to 161-hp to the front wheels, assisting the 911 GT3 R Hybrid’s 480-hp 4.0L inline-6 that powers the two rear-wheels.
The innovative hybrid technology featured in the car has been developed especially for racing, standing out significantly in its configuration and components from conventional hybrid systems. In this case, electrical front axle drive with two electric motors developing 60 kW each supplements the 480-bhp four-litre flat-six at the rear of the 911 GT3 R Hybrid. A further significant point is that instead of the usual batteries in a hybrid road car, an electrical flywheel power generator fitted in the interior next to the driver delivers energy to the electric motors.
The flywheel generator itself is an electric motor with its rotor spinning at speeds of up to 40,000 rpm, storing energy mechanically as rotation energy. The flywheel generator is charged whenever the driver applies the brakes, with the two electric motors reversing their function on the front axle and acting themselves as generators. Then, whenever necessary, that is when accelerating out of a bend or when overtaking, the driver is able to call up extra energy from the charged flywheel generator, the flywheel being slowed down electromagnetically in the generator mode and thus supplying up to 120 kW to the two electric motors at the front from its kinetic energy.
This additional power is available to the driver after each charge process for approximately 6 - 8 seconds. Energy formerly converted - and thus wasted - into heat upon every application of the brakes, is now highly efficiently converted into additional drive power.
Depending on racing conditions, hybrid drive is used in this case not only for extra power, but also to save fuel. This again increases the efficiency and, accordingly, the performance of the 911 GT3 R Hybrid, for example by reducing the weight of the tank or making pitstops less frequent.
After its debut in Geneva the 911 GT3 R Hybrid will be tested in long-distance races on the Nürburgring. The highlight of this test programme will be the 24 Hours on the Nordschleife of Nürburgring on May 15th and 16th. The focus is not on the 911 GT3 R Hybrid winning the race, but rather serving as a spearhead in technology and a 'racing laboratory' providing know-how on the subsequent use of hybrid technology in road-going sports cars.
The 911 GT3 R Hybrid is a perfect example of the Porsche Intelligent Performance philosophy, a principle to be found in every Porsche: More power on less fuel, more efficiency and lower CO2 emissions - on the track and on the road.
